主要用途与概况/Brief Introduction：

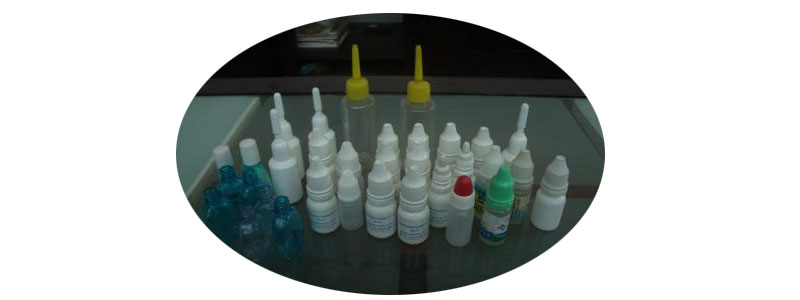

该机应用在2-30ML种种材料的弧形扁形塑料制品或玻璃钢瓶的眼灵药包装、自动化烟油等小药量包装.该机由高准确度轴承量程学校给予量程等分盘标记上塞上盖;促使度轴承机械传动齿轮给予旋盖头的调节;恒转距旋盖;蠕动消化泵记量检验包装;触碰屏管控.无瓶不包装,没有加内塞,外盖.具标记精度,机械传动齿轮平稳性,保养小盖,记量检验准.运行简单易行等长处。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

特别/Characteristic：

◆微计算机设置好、装量精准度、操作步骤不方便。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆虚拟主机发动机转速可进行无极变速变频器可控硅调压。the mainframe running speed is stepless frequency conversion.◆加工量智能按量调节。the product quantity can be controlled. ◆好几种电脑故障提示卡功用(如低空气压力。无灌装线、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆电脑全自动关机特点，对某个在轨道出显接连无灌装设备、无内塞原因可电脑全自动关机。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

的性能参数指标/Main Technical Parameters：

适用于规格参数Filling Volume	2-30ml
制作专业能力Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
分装准确度Filling Precision	≤±1%
电源适配器 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自然上塞率Stoppering rate	≥99%
氧气源Air Supply	1.3 m3/h    0.4-0.8Mpa
工作功率 Power	2.0 kw
服务器毛重Weight	550 kg
看上去图片尺寸Dimension	1800*1000*1500mm
