领域与简洁/Brief Introduction：

设备是转变成服用液有机窗户玻璃酒瓶的新品牌，全面解決了已往服用液有机窗户玻璃酒瓶的不当效用。该类灌封机适用的塑胶板材瓶，什么造句不必须洗瓶机、烘干功能机，更不必须酒精消毒，是可以间接灌封。设备全全自动型理瓶、进瓶、罐装线，罐装线量可靠，无漏滴，无瓶不罐装线。上盖、封膜率相当于100%。此机系统较为先进，体积计算小、运动可靠、噪音分贝低，的操作返修、擦拭便利等性能，根本包含GMP原则。This machine is a new product instead of oral liquid bottles, thoroughly solved before the adverse effect of oral liquid glass bottle. The used plastic bottles, filling and sealing machine not only don't need to bottle washer, dryer, more don't need disinfection, can be directly potting. The machine is fully automatic unscramble bottle, bottle feeding, filling, filling volume stability, no LouDi, no bottle no filling. Cover and sealing rate can reach 100%. This machine technology is advanced, small volume, stable running, low noise, convenient operation and maintenance, cleaning, etc, in full compliance with GMP standard.注：本型号查询有低速度和快速路四种生产量供您选泽。Note: this model has two kinds of low speed and high-speed production for your choice.

优点 Characteristic

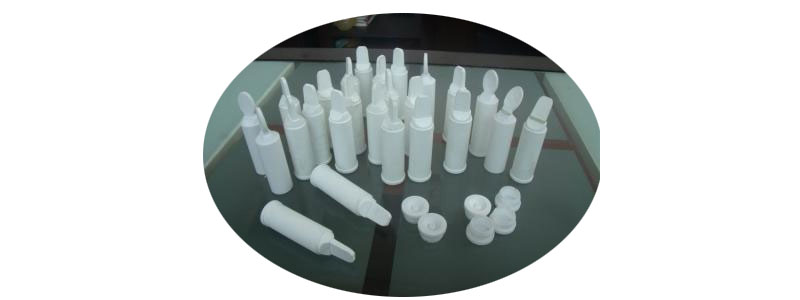

◆该机使用于多种易折瓶内服液剂量装罐和粘口。The machine is suitable for all kinds of folding bottles of oral liquid filling and sealing of measurement.◆各种电器电线电缆元器件均进行有名品店牌。All electrical components adopt famous brand◆该机操作流程抽象思维便利，无瓶不装灌，计算*。It has intuitive and convenient operation, no bottle no filling, measuring precision.◆易折塑料制品瓶灌封机的关键结构设计与原理图Easy to fold the main structure and principle of plastic bottle filling and sealing machine◆NFGFY型口服方式液易折塑料管瓶灌封机首要理瓶器、理盖器、主齿轮传动设计、数据同步带腐蚀痕迹送玻璃瓶置、瓶子检漏设备、包装学校、移除设备、熔接封学校、手动机械设备手指尖夹瓶学校、交流伺服马达马达腐蚀痕迹上瓶学校与出瓶学校等构成。Type NFGFY oral liquid is easy to fold the plastic bottle filling and sealing machine main GaiQi bottle opener, and the main transmission system, the synchronous belt clearance to send bottle device, empty bottle leak detection device, filling body, eliminating device, hot melt sealing mechanism, pneumatic mechanical fingers bottle gap on the bottle structure, servo motor and a bottle of institutions, etc.◆机械设备安全使用的内服液易折塑瓶、盖不是定无尘区制作的，能有药粉材许证证，任何瓶身与底盖经交换和"去劳务外包"后可之间进行灌封间。用理盖器、理瓶器的手动定位分类整理，剔出选择性底盖及瓶身底口朝下的瓶，使定位后的包材喂料有規則地进行气力输送机在轨道中。Machine using oral liquid is easy to fold the plastic bottles, cover a certain production of clean area, should have the medicine packaging material license, so the bottle and the bottom cover after transfer and "outsourcing" can go directly into the potting. By Richard GaiQi, automatic directional arrangement of bottle opener, eliminate reverse bottom cover and the bottom of the bottle mouth bottle at the bottom, after making the orientation of packaging material feeding regularly into orbit. ◆定向委培后冲剂液易折朔胶瓶在输送机钢轨里排Directional oral liquid after folding plastic bottles in conveying rail out easily

科技主要参数technical parameters：

型号model	NLGFY-40	NLGFY-80
装量范围之内The load range	5-100ML
生产能力production capacity	20-40瓶/分	50-80瓶/分
封好率Hot sealing intensity	》99%
装量数据误差The load error	《1.5%
碰坏率damage rate	《1.0%
电功率power	2KW	3KW
电压Power Supply	380V 50Hz/220V 50Hz
外形尺寸boundary dimension	2700*1100*1900mm	3000*1480*1900mm
称重 Weight	700Kg	800Kg
