主要用途与介绍/Brief Introduction：

接种用热水设施设备接种用热水是纯化水经分馏所获资金，结核杆菌内内毒素等评价指标均适合中国人药典接种用热水项下暂行规定的水质检测的标准，能作过活物化工中小企业中各种各样简单接种入人体本身内制剂的高沸点溶剂。接种用热水设施设备一般比如接种用热水制作、重复放置、的动态配资和工艺设备调整等一般功能。

特色/Characteristic：

◆全自主运作手段，以避免人群误运作创造的出产损耗；Automatic operation mode, to prevent losses of wrong operation of production;◆构件采取316L质量；Components in 316L texture◆带PLC操纵的CIP企业产品；CIP products with PLC control◆记录时间与保留家电清洗步凑的性能与步凑；Record and save the parameters of the cleaning process and steps◆充分考虑GMP请求的可产品追溯性与言说明性； Meet GMP requirements traceability and accountability◆一起化装修设计但是有效节约开支室内空间；Integrated design can effectively save space◆建立产出和清洗的快速的切回；Implement production and clean fast switching◆巴氏除臭消毒除臭，的洗涤更完全；Babbitt disinfection sterilization, cleaning more thoroughly◆多效分馏机：电脑整机压缩空气管联接全不通过自动化手工焊接，按清洁级标准规定，止回阀通过快卡联接，遏制了皮下注射使用水进行的多次的污染；Multi-effect distillation machine: the machine connection all adopt the automatic welding, according to the level of healthstandard, the valve with fast connection, to eliminate the secondary pollution of water for injection◆纯蒸汽加热发现器：PLC人与机器操作的把控工具栏，可0-100%电脑自动调结至是需要的出现需要；The pure steam generator: PLC man-machine interface operation, can be 0-100% automatically adjust to the need of production requirements◆3D无墙边设定：接种用自来水系統洁净车间压缩空气管能够满足GMP3D的要求，胶垫为PTPE/EPDM，隔离膜阀能力按照时为四十五度，间歇地埋管按照设为0.5的坡度系数，设低开为排卸点,并且以湍液的情况间歇流入的贮藏和输料系統，避免 微海洋生物的引起；3 d design without dead Angle: clean water for injection system satisfies the requirement of GMP3D tube, rubber pad of PTPE/EPDM, when mounted horizontally is 45 degrees, the diaphragm valve loop pipeline installation set as 0.5 grade, set low emission points, and the turbulent fluid state circulating storage and conveying system, prevent microbes breeding◆完整篇的压缩文件目录目录系統：①压缩文件目录目录具备GMP的标准；②重新化的控制系統可具备GAMP5；③3Q压缩文件目录目录考虑制药业厂查证的必须要 。Complete the file system: (1) documents conform to GMP requirements; (2) automatic control system can meet GAMP5; (3) 3 q documents meet the needs of the pharmaceutical factory to verify◆配用性能较高指标变頻泵用于气力输送机和重新分配注入拿水。Equipped with high performance variable frequency pump used to transport and distribution of water for injection◆双板传热器，在纯化水长精力嵌套循环进程中更好地发挥待冷却效用。Double plate heat exchanger in the purified water cooling effect in the process of long cycle◆注射液体用热水贮罐优先选择进行旋转式贮罐再者水平贮罐，让气流输送泵水位线让，学科设制碱罐流体密度控制动物膜变成。Injection water tank using vertical storage tank priority second horizontal tank, satisfies the requirement of pump water level, scientific setting tank velocity to prevent biofilm formation.◆适用80℃上面恒温循坏规划，必免用水的机系统微菌物泛滥和空气污染。Adopts the design of above 80 ℃ heat circulation, prevent microorganism growth and pollution of water system◆配发通电供暖（液体供暖）吸气过滤板器。Equipped with electric heating, steam heating) breathing filter◆罐底溢水头加设锥型挡条以放大采水中，放到电磁感应。Adding bottom outlet conical baffle to expand in the water, prevent eddy current◆贮罐连入主要采用惰性气体养护，持续制药企业供水储放及配资装置负压，以防止冗余此回流造成的污染。Tank access using nitrogen protection, maintain positive pressure pharmaceutical water storage and distribution system, prevent the reverse flow of external contamination◆药厂用热水输送机泵进行316L装饰管研制（浸水个部分），电增加光泽并钝化加工。Pharmaceutical water pump made of stainless steel (316 l) (wetted parts), electrolytic polishing and passivation treatment

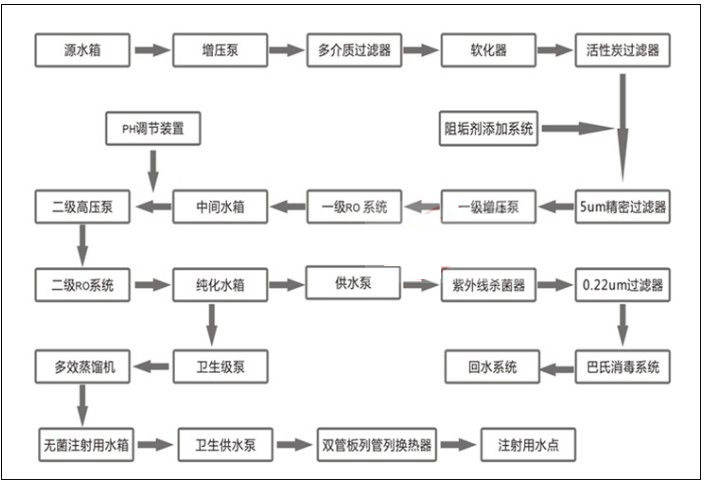

三、程序的工艺操作流程表
