主要用途与概述：/Purpose and introduction

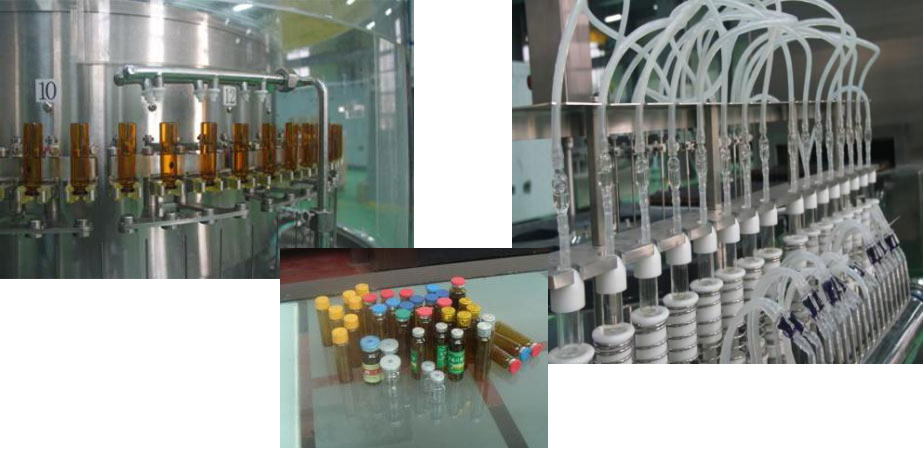

内服液洗烘灌轧三级联动性线由直列V型多普勒彩超波洗瓶机、铁路桥式内间歇 间歇过滤除菌烘烤箱、内服液分装轧盖机等分解成，适于于 5-30ml 等各个规 格内服液瓶的生育销售。可完毕对医疗药品生育销售中安瓿瓶淋水、多普勒彩超波进行维护清洁、冲水、充 气、晒干过滤除菌、一系列冷却、分装、轧盖等生产工艺步骤之一的三级联动性作业。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

显著特点:/characteristic

◆洗瓶机主要采用机械性手夹瓶，应用多重要求的玻璃瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶用热气喷针往复运动追踪放方法，的清洗功效好，节电再生资源。并应设针架防运动传动装置，提供喷针放塑料瓶子的最准度，减掉断针不良现象发生了；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶一整个气水管道、喷针全部独自分离，减少了交叉式生态破坏，适用GMP实验室管理标准规范；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺母前加设抗震块，有保障螺母，减小碎瓶用Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶采用了总体進口同部带，进行连接拨块输送带内服液，运作比较稳定不靠谱In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆烘烤箱所采用红外线采暖器管，不绣钢采暖器管两层采暖器高温更加均匀性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆装灌轧盖机可以选择配工业陶瓷泵、不锈钢圆管泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆灌装设备无瓶止灌，无瓶不轧盖功能性。Pieces filling without bottle filling, no bottle no rolling function.◆整线应用PLC总操作、直流abb变频器、触模屏操作工艺，作业安全稳定安全。触模屏可凸显各手机单机的作业阶段，各操作点的进水管、汽压、风压气压、室内温度等凸显，各转换开关阶段和机械机械出现故障凸显，机械机械出现故障自我认识程度和机械机械出现故障解析及是排除工艺。使这个生產方式工作提高一键化操作，联线兼具三机电气自动化静态平衡传动装置，衡量生產方式匀衡稳定安全。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.可根据买家的须得，还可供配置：According to the needs of customers, but also available for selection:◆西门子系统化、德力西、西门子、台达等厂家操纵系统化；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气工作压力、油温及mri波密度、灰尘a粒子、风压在线平台判断、短信报警、的记录、word打印软件系统。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无菌操作屏蔽器系统。Mixer ORABS, CRABS, aseptic isolator system.

技艺参数值：technical parameters

适合标准Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
灌装设备精准度Filling accuracy(%)	≤ ± 2.5
装罐头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖完成率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
