应用领域与详细资料/Brief Introduction：

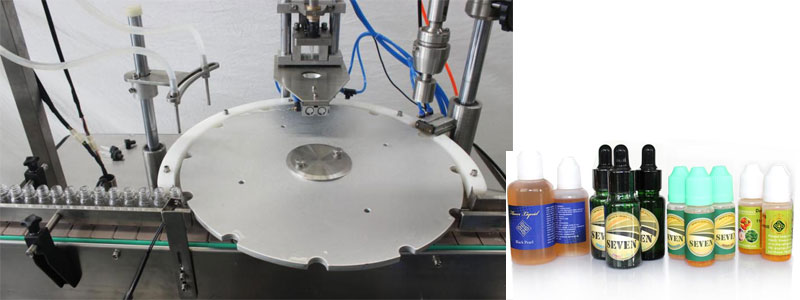

机器可使用于于2-30ML多种多样质量的椭圆形扁形泡沫塑料或玻璃板瓶的眼蓝药水装灌设备生产线.机器由高精密度轴承度数单位出具度数等分盘精确性追踪定位上塞上盖;快快慢轴承链传动链出具旋盖头的起降;恒转距旋盖;消化吸收泵计量校准校准装灌设备生产线;触碰屏管控.无瓶不装灌设备生产线,要加内塞,外盖.具精确性追踪定位精确性,链传动链保持稳定,保护性瓶盖子,计量校准校准准.实操简单的等优势：。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

优点/Characteristic：

◆微pc设计、装量准确、控制便宜。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆服务器电机转速可进行无级变速调频调速器。the mainframe running speed is stepless frequency conversion.◆制作量手动降钙素原检测保持。the product quantity can be controlled. ◆各种各样出现问题的建议系统(如低大气压。无包装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆自己暂停服务的功能，对某个 轨道组件诞生连续式无分装、无内塞症状可自己暂停服务。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

系统性能参数/Main Technical Parameters：

适于规模Filling Volume	2-30ml
制作能力素质Productivity	30-60瓶/分  70-100瓶/分30-60bottles/min    70-🔯100bottles/ꦏmin
灌装生产线gps精度Filling Precision	≤±1%
24v电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
定时上塞率Stoppering rate	≥99%
氧气减压阀Air Supply	1.3 m3/h    0.4-0.8Mpa
公率 Power	2.0 kw
机子净重量Weight	550 kg
外貌尺寸Dimension	1800*1000*1500mm
